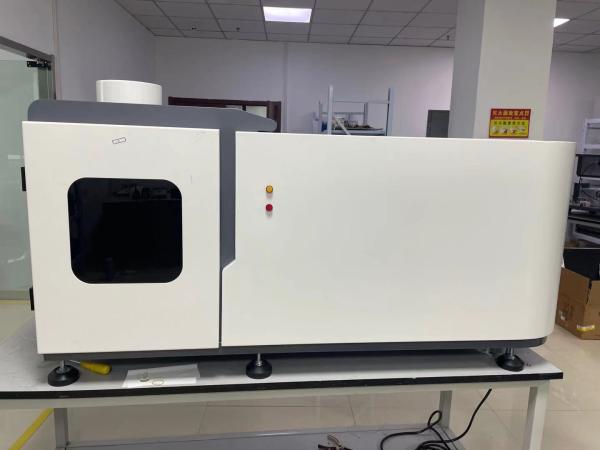

ICP-6800S Inductively Coupled Plasma Optical Emission
Spectrometer(Petrochemical)
Application Field
Petrochemical Inductively Coupled Plasma Optical Emission
Spectrometer(ICP6800S) is a professional instrument for the
petrochemical industry launched by Macylab Instruments. It can be
used to determine more than 30 elements in crude oil, mainly for
Fe.Na.Mg.Ni. V.Ca. Pb.Mo.Mn.Cr.Ca.Ba.As; also can be used to
measure iron, manganese, lead, silicon in gasoline ,and the Wear
elements of additive in lubricating oil, it also can be applied for
multielement determination in base oils; for the determination of
sodium in formaldehyde and the determination of oil field tracer.
Application Environment
CONTENT RANGE
Shipping/Storage Ambient Temperature 15℃-25℃
Shipping/Storage Relative Humidity ≤70％
Atmospheric pressure 86-106 kPa
Power Supply 220±10V 50-60MHz
Working Humidity ≤70％
Working Temperature 15℃-30℃
Technical Parameter
RFPower technical parameter:
Circuit type: solid-state RF power supply, with function of
automatch
Frequency: 27.12MHz±0.05％
Frequency Stability: ＜0.1%
Power Output: 800W—1500W
Power Output Stability: ＜0.3%
Escaped RF radiation: 30cm away from the instrument, electric
field: E﹤2V/m
Sampling System Technical Parameter:
Output working coil inner diameter :25mm
Torque tube: Three concentric, external diameter 20mm
Coaxial nebulizer:Outer diameter 6mm
Double barrel atomizing chamber: Outer diameter 34mm
Gas Flow Controls
1. Plasma Argon Flowmeter:(100-1000)L/h (1.6-16L/min)
2. Auxiliary Argon Flowmeter:(10-100)L/h (0.16-1.66L/min)
3. Carrier Argon Flowmeter(10-100)L/h (0.16-1.66L/min)
4.Oxygen Flowmeter:(0-100)ml/min (30-50ml/min)
5.Pressure Maintaining Valve(0-0.4MPa)
6.Cooling Water:Temperature: 20-25℃, Rate of Flow>5L/min,
Hydraulic Pressure>0.1MPa
Spectrometer
Optics:Czerny-Turner type
Focal length: 1000 mm
Grating: Ion Beam Etching Holographic Grating, 4320L/mm
Reciprocal linear dispersion: 0.26nm/mm
Resolution:≤ 0.005nm (4320 line grating)
Wavelength range: 4320 line grating:(180nm～435) nm
Minimum pace of stepping motor: ≤0.0006 nm
Exit Slit:10μm；Entrance Slit:8μm
Photoelectric Converter Performance
Photomultiplier tube specification: R293
Negative HV on PMT: 0-1000V;Stability: ＜0.05%
Refrigeration System
Refrigerating Swirling Fog Chamber:The use of imported silica gel
collection technology can make the temperature drop to 20 degrees
below zero
Overall Performance
Wavelength range of scanning: 185nm～435nm(4320L/mm line grating)
Repeatability: RSD(Relative Standard Deviation)≤1.5％
Stability: RSD(Relative Standard Deviation) ≤2％
Detection Limits (µg/L):
Direct injection sampling and measure iron(Fe), manganese(Mn),
lead(Pb) and silicon(Si) in gasoline.Analysis results:
| Element | Fe | Mn | Pb | Si |
| Determination value/(mg/L) | 3.6 | 17.5 | 1.8 | 2.4 |
| RSD/% | 0.56 | 0.23 | 1.38 | 0.92 |
Standard Additionand Recovery Rate:
| Number | Standard Addition (mg/L) | Fe | Mn | Pb | Si |
| | Determination value(mg/L) | Recovery /% | Determination value(mg/L) | Recovery /% | Determination value(mg/L) | Recovery /% | Determination value(mg/L) | Recovery /% |
| 1 | 0.45 | 0.436 | 96.9 | 0.468 | 104.0 | 0.432 | 96.0 | 0.465 | 103.3 |
| 2 | 0.9 | 0.887 | 98.6 | 0.913 | 101.4 | 0.868 | 96.4 | 0.919 | 102.1 |
