Features:
New optical road design, cross-international procurement of
preferred accessories, superior instrument performance, high
resolution 7-inch touch screen, to meet the analysis needs of
professional users. It can be widely used in organic chemistry,
biochemistry, drug analysis, food inspection, medicine and health,
environmental protection, life science and other fields of
scientific research, production.
|

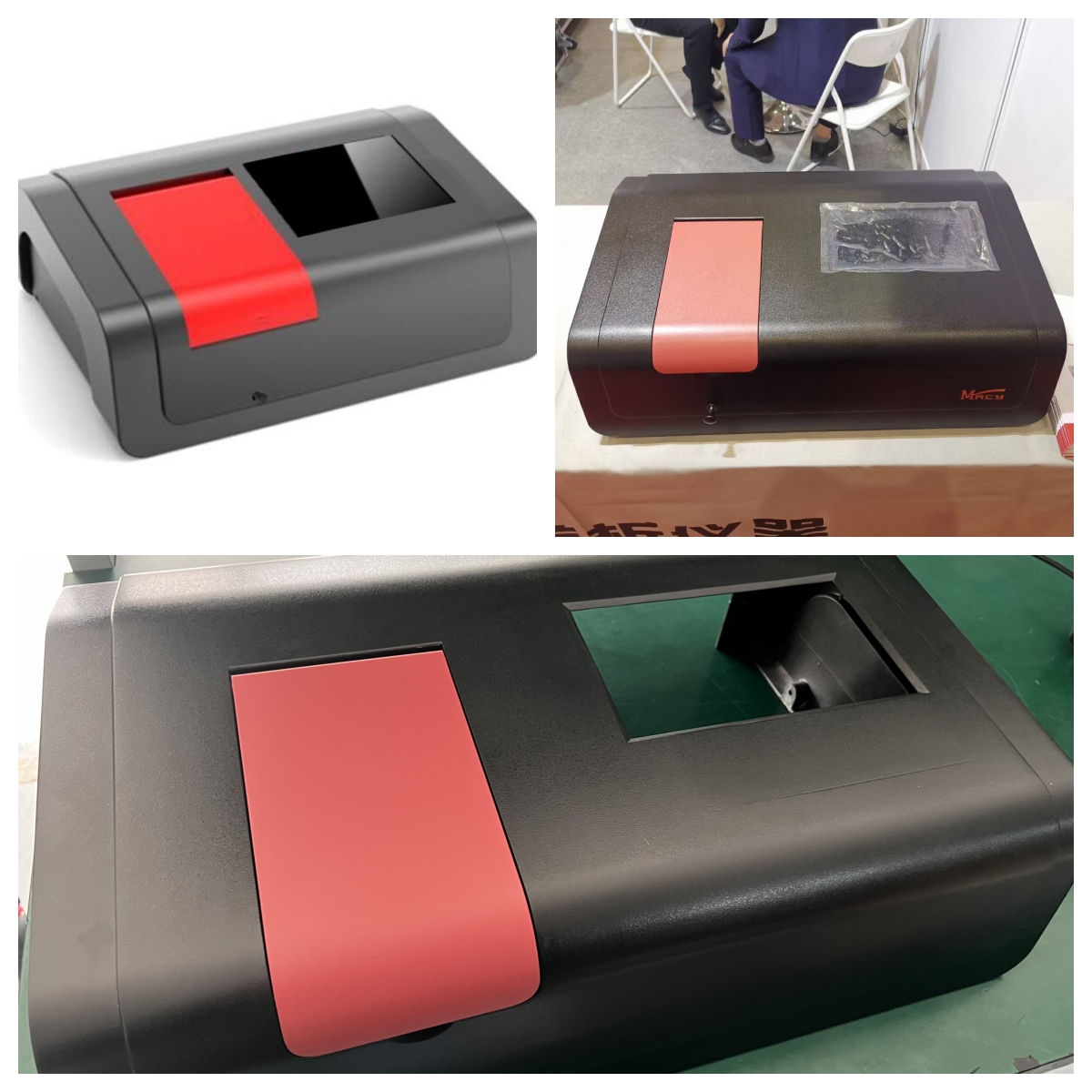

The Pictures:
Software features
●Wavelength Scan: the measured object can be 190nm-1100nm full band
spectrum scan , can also be segmented scan
●Kinetic tests: the time of the measured object scanning , timely
detection of changes in concentration caused by changes in
absorbance
●Quantitative measurement: by establishing a standard curve , the
concentration can be measured in the analysis
●Multi- wavelength testing : set a plurality of wavelengths
simultaneously , the measured absorbance of a plurality of
wavelengths in the test
●DNA / protein test: the test formula purity of nucleic acid and
protein concentration analysis of DNA / protein
Technical Specifications:
Model: UV1500CSPC |
| Wavelength Range :190～1100nm |
| Band Width: 2nm |
| Weight :15Kg |
| Dimensions: 480×350×220mm |
| Power :120W |
| Power Requirement :AC 220V/50Hz 110V/60Hz |
| Light Source :Import Deuterium Lamp & Tungsten Halogen Lamp |
| Detector: Import Silicon Photodiode |
| Display Mode :Touch LCD Screen (7 inches). |
| Photometric Display Range: -0.3～3A |
| Wavelength Setting :Automatic |
| Photometric Mode :T,A,C,E |
| Stability :0.001A/h@500nm |
| Stray Light :≤0.04% τ (220nm NaI,340nm NaNO2) |
| Photometric Repeatability :0.15% τ |
| Photometric Accuracy :±0.3% τ |
| Wavelength Repeatability :≤0.2nm |
| Wavelength Accuracy: ±0.5nm |
| Optical circuit structure: C-T type Parallel double beam |
|
Our Company:
Advantages:
1 .With the scanning function, can meet the requirements of various
applications, can be used in biological research, biological
industry, drug analysis, pharmaceutical, teaching and research,
environmental protection, food hygiene, clinical testing, health
and epidemic prevention and other fields.
2. The broad wavelength range can meet the requirements of the
wavelength range in various fields
3. Improved and optimized optical path design, imported light
sources and receivers result in high system performance and
reliability
4 .Rich measurement methods, with wavelength scanning, time
scanning, multiwavelength measurement, multi-derivative measurement
(selection), double wavelength, three-wavelength (selection) DNA
protein measurement (selection) and other measurement methods, can
meet the requirements of different measurements
5. Host Chinese operating system, 7-inch color touch screen display
The Factory:
FAQ:
1. What areas and applications can it be used?
It can be used for qualitative or quantitative meansurements for
water solution in the following areas: metallurgy, pharmacy, food,
health, institutes, biological chemistry,life science,
petrochemical industry, mining, quality control, environmental
protection, etc.
2. Why the reading is red and reach its maximum value 3.00Abs?
Probably you use the glass cuvette in UV range.
3. Why the wavelength calibration or self checking fail?
The deuterium lamp is turned off or there is something wrong with
the D2 lamp, like the fuse, triode or the lamp itself.
4. Why is the reading is not as accurate as before?
Do the wavelength calibration before testing or restore the device
to its default factory settings.
5. Why PC software can not be installed successfully?
Close your anti-virus software on the computer and do it again.
6. Why the Abs value is negative(lower than zero)?
Do the blanking or change the reference sample.
