Product description, technical parameters and configuration
Character
Introduction

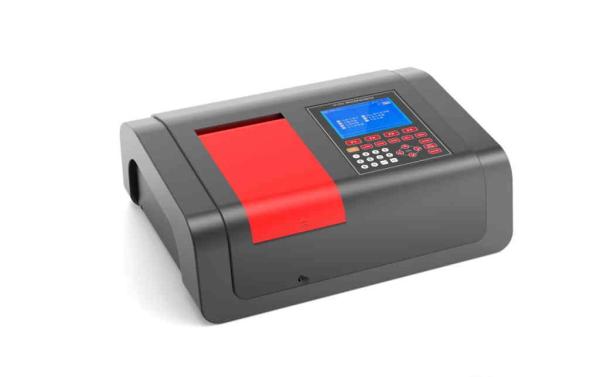

●UV-1600 successful implementation of the stringent requirements of
high accuracy and reliability measurement to meet the requirements
of various applications that can be used in biological research,
bio-industry, pharmaceutical analysis, pharmaceutical, teaching and
research, environmental protection, food hygiene, clinical
examination, health and epidemic prevention and other fields.
●A wide wavelength range, the wavelength range to meet the various
requirements of the field.●Automatic design to achieve the most
simple means of measurement.
●LSI design greatly improves the stability and reliability of the
system.
●Improved optimization of the optical design, import source and
receiver system created a high performance and high reliability.
●Rich measurement methods, with a wavelength scan, time scan,
multi-wavelength determination, multi-order derivative
determination (optional), dual-wavelength, three-wavelength
(optional) DNA protein measurements (optional), and other
measurement methods to meet different measurement requirements, and
can be displayed directly on a 6-inch screen.
●Based on user requirements optional hole rack, manual four with
stand, manual Eighth rack, automatic Eighth frame, ●glass stand,
test tube rack, 1cm colorimetric frame, 5cm colorimetric frame,
10cm colorimetric racks.
●Measurement data can be output through the printer with USB
interface.
●Can be powered down to save the measurement parameters and data,
user-friendly.
●Can achieve more accurate and flexible measurement via PC control,
which can meet the needs of different users.
Optical Specifications
| Optical System | Double beam |
| Wavelength Range | 190～1100nm |
| Band Width | 1.8nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ≤0.1nm |
| Photometric Accuracy | ±0.3% τ(0-100%τ) ±0.002A(0～0.5A) ±0.003A(0.5A～1A) |
| Photometric Repeatability | 0.15% τ(0-100%τ) ±0.001A(0～0.5A) ±0.0015A(0.5A～1A) |
| Stray Light | ≤0.03% τ (220nm NaI,340nm NaNO2) |
| Stability | 0.0005A/h@500nm |
| Noise | ±0.0002A@500nm |
| Baseline Flatness | ± 0.001A |
| Photometric Mode | T,A,C,E |
| Wavelength Setting | Automatic |
| Photometric Display Range | -4～4A |
| Display Mode | 6 inches high brightness blue LCD |
| Detector | Import Silicon Photodiode |
| Light Source | Import Deuterium Lamp & Tungsten Halogen Lamp |
| Power Requirement | AC 220V/50Hz 110V/60Hz |
| Power | 120W |
| Dimensions(W*D*H) | 480×350×220mm |
| Weight | 20Kg |
