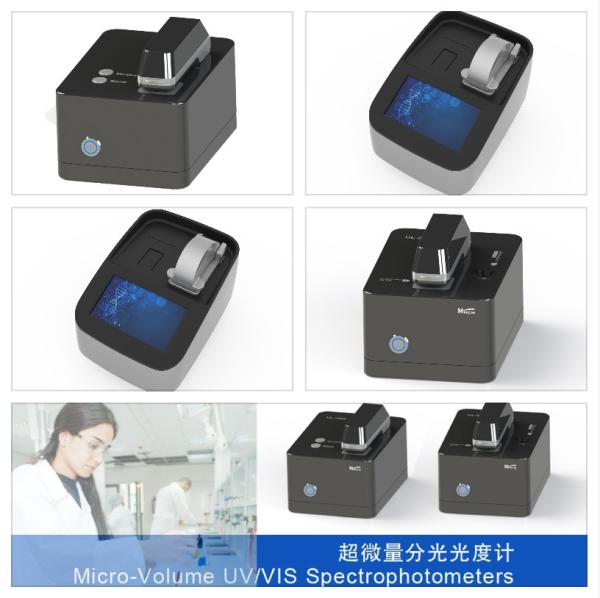

Spectrophotometer is an important analysis instrument wildly
applied in research of physics, chemistry, biology, medicine,
material, enviroment and modern production management of chemistry,
medicine, enviroment test, metallurgy. Spectrophotometer is the
instrument for quantitative and quantitative analysis by spectrophotometry. It is usually used in quatitative research
of nucleic acid, proteins and bacterial concentration.
Feature
*Microscale sample test, minium 0.5ul, ultromicro and cuvette are
possible
*Wildly test area, 100 times of the traditional spectrophotometer
*No need to dilute for most samples
*Test directly, no need to warm-up, container test and daily
consumtion test
*Whole wavelength 190-1100nm, accuracy 1nm, auto scannig wavelength
190-850nm
*Compact size and partable package fitable for on-site test
*More accurate and fexiable test is realized by PC contry
Feature
*Microscale sample test, minium 0.5ul
*Wildly test area, 100 times of the traditional spectrophotometer
*No need to dilute for most samples
*Test directly, no need to warm-up, container test and daily
consumtion test
*Whole wavelength 190-1100nm, accuracy 1nm, auto scannig wavelength
190-850nm
*Compact size and partable package fitable for on-site test
*More accurate and fexiable test is realized by PC contry
Specification
| Minimum Sample Size | 0.5ul |
| Wavelength Range | 190-850nm |
| Optical Distance | 1mm/0.2mm/0.05mm |
| Cuvette Optical Distance | 10mm/5mm/2mm/1mm |
| Wavelength Accuracy | 1nm |
| Wavelength Resolution | ≤0.3nm(FWHM at Hg 253.7nm) |
| Absorbance Accuracy | 2%(0.76 at 257nm) |
| Absorbance Resolution | 0.002Abs(at 1mm optical distance) |
| Absorbance Range | 0.005-300A(10mm equivalent) |
| Detection Range | Lower limit 2ng/ul (dsDNA);Upper limit 15000ng/ul (dsDNA) |
| Sample Pedestal Material | 304 Stainless Steal and Quartz |
| Measurement Time | ＜5S |
| Detector | 3648CCD |
| Light Source | Xenon flash lamp |
| Absorbance Test Range | 0.1~5Abs. ±0.1Abs 5~80Abs.±2% (can extend to 300Abs) |
| Dimensions (W x D x H)mm | 200*130*136 |
| Weight | ≤2.5KG |
| Operating Power | 24W |
| Voltage | AC100-240V;50-60Hz |
| Display Language | English and Chinese |
