Character
●UV-1700PC successful implementation of the stringent requirements
of high accuracy and reliability measurement to meet the
requirements of various applications that can be used in biological
research, bio-industry, pharmaceutical analysis, pharmaceutical,
teaching and research, environmental protection, food hygiene,
clinical examination, health and epidemic prevention and other
fields.
●A wide wavelength range, the wavelength range to meet the various
requirements of the field
●5nm, 4nm, 2nm, 1nm, 0.5nm spectral bandwidth of five custom
installation according to user requirements, to meet the stringent
requirements of the Pharmacopoeia
●Automatic design to achieve the most simple means of measurement
●LSI design greatly improves the scalability and reliability of the
system
●Improved optimization of the optical design, import source and
receiver system created a high performance and high reliability
●Rich measurement methods, with a wavelength scan, time scan,
multi-wavelength determination, multi-order derivative
determination (optional), dual-wavelength, three-wavelength
(optional) DNA protein measurements (optional), and other
measurement methods to meet different measurement requirements, and

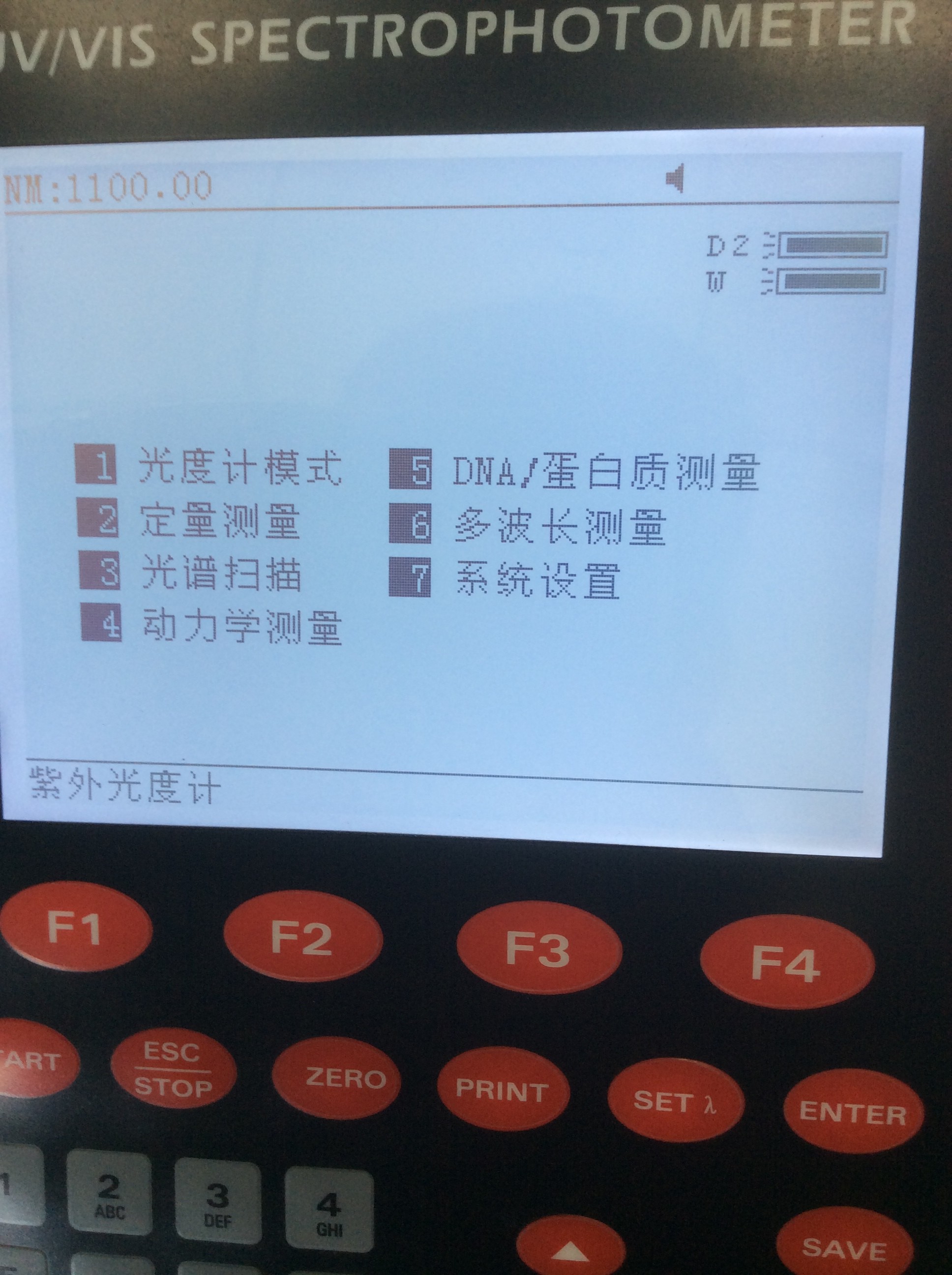

can be displayed directly on a 6-inch screen
●Based on user requirements optional hole rack, manual four with
stand, manual Eighth rack, automatic Eighth frame, glass stand,
test tube rack, 1cm colorimetric frame, 5cm colorimetric frame,
10cm colorimetric racks
●Measurement data can be output through the printer with USB
interface
●Can be powered down to save the measurement parameters and data,
user-friendly
●Can achieve more accurate and flexible measurement via PC control,
which can meet the needs of different users
Technical Specifications
Wavelength Range | 190～1100nm |
Band Width | 1.8nm , 1.0nm,or 0.5 , 1, 2, 4nm adjustable |
Wavelength Accuracy | ±0.3nm |
Wavelength Repeatability | ≤0.1nm |
Photometric Accuracy | ±0.3% τ(0-100%τ) ±0.002A(0～0.5A) ±0.003A(0.5A～1A) |
Photometric Repeatability | 0.15% τ(0-100%τ) ±0.001A(0～0.5A) ±0.0015A(0.5A～1A) |
Stray Light | ≤0.03% τ (220nm NaI,340nm NaNO2) |
Stability | 0.0005A/h@500nm |
Noise | ± 0.0002A @500nm |
Baseline Flatness | ± 0.001A |
Photometric Mode | T,A,C,E |
Wavelength Setting | Automatic |
Photometric Display Range | -4～4A |
Display Mode | 6 inches high brightness blue LCD |
Detector | Import Silicon Photodiode |
Light Source | Import Deuterium Lamp & Tungsten Halogen Lamp |
Power Requirement | AC 220V/50Hz 110V/60Hz |
Power | 120W |
Dimensions(W*D*H) | 560×450×230mm |
Weight | 28Kg |
